Fusion Grid Cloud 200
- Nodes
- 9
- Compute cores
- 384
- Accelerators
- 2 × 48GB
What is in it
- Login, head and controller nodes3x
- Fabric switch1x2 × 25GbE
- Accelerated compute nodes2x1 accelerator each
- Compute nodes4x

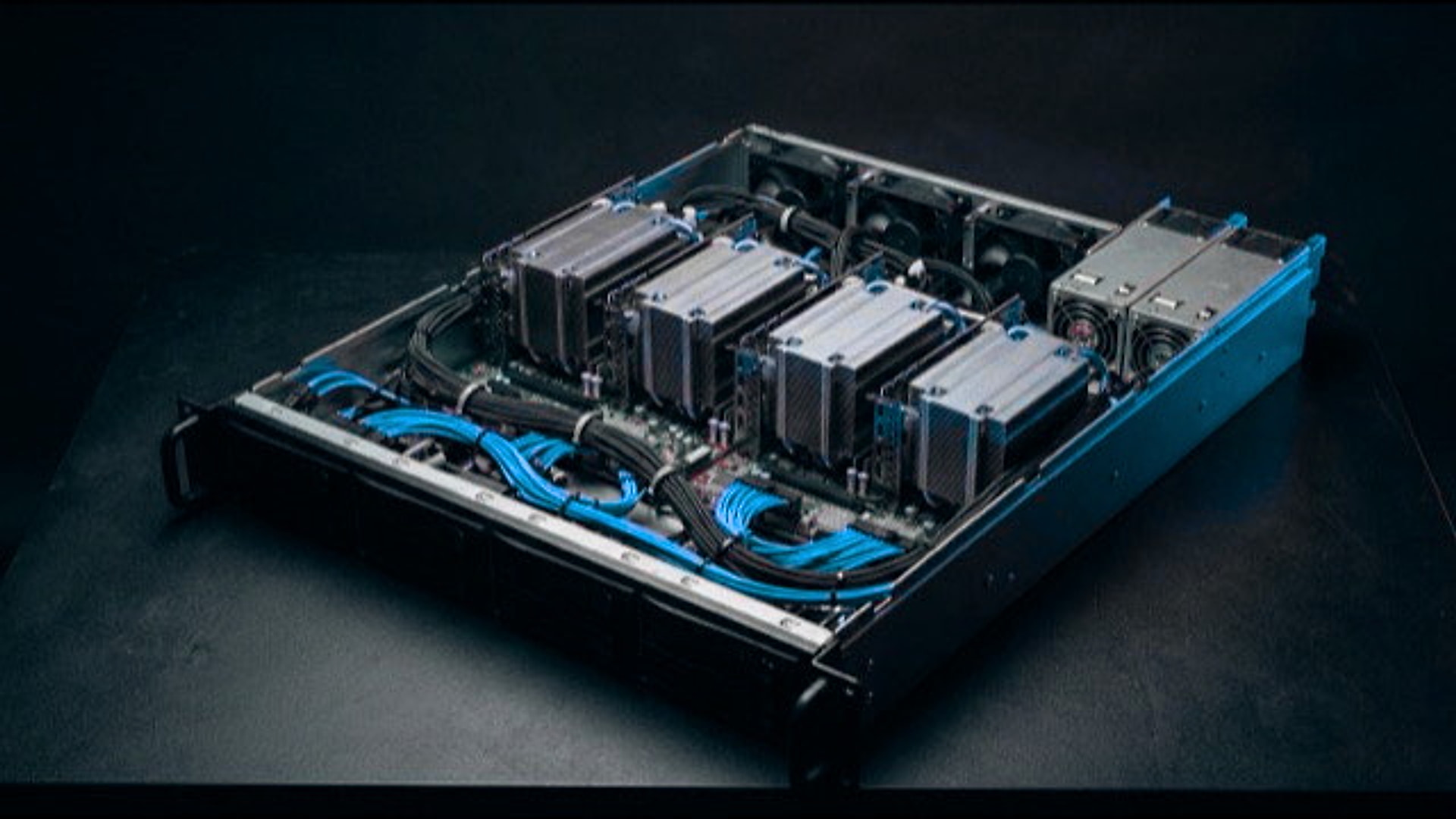

What arrives, across one cabinet, racked, cabled and burned in before it ships. The nearest single server we sell is the Fusion Rack Web 200, shown in the photograph, with every part listed.
Why this cluster
Still 3 controllers, because two cannot form a quorum and the control plane is the reason to own this instead of renting. Ceph runs hyperconverged on the compute nodes with three-way replication, which is what makes 9 nodes enough.
Made for your workflow
Your cluster, connected
Explore the hardware, shared capacity and connections that bring your cluster together.
- Compute nodes
- 6 nodes
- 1 cabinet · Private cloud
- Multiple machines share the workload across your team or applications.
- CPU cores
- 384 cores
- Across the specified nodes
- Processing capacity for parallel jobs, shared services and data workloads.
- Connecting the nodes
- 2 × 25GbE
- Specified network fabric
- The interconnect moves data between nodes so the cluster can work together.
- Shared storage
- 120TB Ceph
- Specified filesystem capacity
- A shared home for the files, datasets and results your nodes need to access.
How the cluster comes together
Network fabric2 × 25GbE · 1 switch
- Control & access3 login, head and controller nodes
- GPU compute2 accelerated compute nodes
- Compute4 compute nodes
Each square represents one node. Final capacity and cabinet layout are sized to your site.
What it is for
A private cloud gives you cloud computing on hardware you own and run. MAAS manages the physical machines (PXE discovery, IPMI power control and automated operating system deployment), and OpenStack adds virtual machines, software-defined networking and storage on top. Performance depends as much on the control plane staying available, and on data moving efficiently between components, as on processor speed. That is why the controllers are specified separately from the compute. Choose it for data residency, security or regulatory needs, and for workloads where owning the hardware costs less than renting it.
Both sizes of private cloudSpecified
- Nodes
- 9
- Compute cores
- 384
- Accelerators
- 2 × 48GB
- Interconnect
- 2 × 25GbE
- Storage
- 120TB Ceph
- Each node
- 2x Intel Xeon 6737P, 256GB DDR5 ECC
- Cabinets
- 1
- Deployment
- Rack, in your own room or a colocation
These are the figures the design was specified and tested to, not figures computed from a parts list. A cluster is a network, a filesystem and a node count, and no single build expresses that. The final numbers come from sizing it to your room, your power and your work, and every node in it is measured the usual way.
