Socket LGA1700
DIMM 4 slots
Slots 2x x16

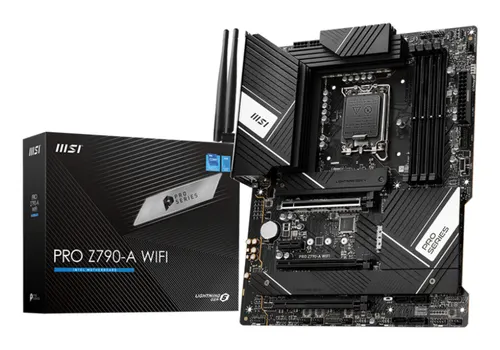

Photographs of this unit 1 / 4 MSI PRO Z790-A WIFI
Image source: Icecat · Manufacturer product image syndicated by Icecat; usage subject to Icecat terms
Why this part Factory sealed, full manufacturer warranty where the vendor honours it in Pakistan.
Covered by a 12 month warranty from the manufacturer where honoured locally, and by us where not.
Specification Platform
Socket LGA1700
Chipset Z790
Form factor ATX
VRM phases 16
EPS headers 2 x 8-pin Memory
Generation DDR5
Slots 4
Accepted UDIMM
Max speed 6400 MT/s
Max capacity 192 GB
ECC No Expansion
Slot 1 Gen 5.0 x16 mechanical, x16 wired
Slot 2 Gen 4.0 x16 mechanical, x4 wired, narrower than it looks
Slot 3 Gen 3.0 x1 mechanical, x1 wired Storage & network
M.2 slots 4 (up to Gen 5.0)
SATA ports 6
U.2 ports 0
Onboard network 1 x 2.5 GbE
Out-of-band management None
BIOS flashback Yes
