- Socket
- LGA1700
- DIMM
- 4 slots
- Slots
- 2x x16
Photographs of this unit

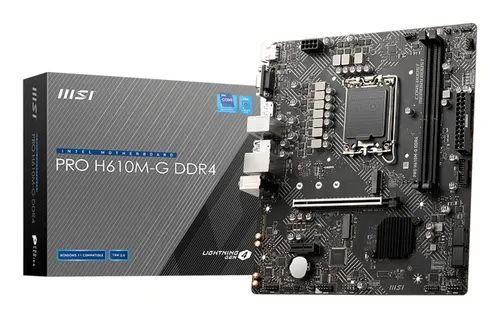

1 / 4MSI PRO H610M-G DDR4
Image source: Icecat · Manufacturer product image syndicated by Icecat; usage subject to Icecat terms
Why this part
- Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
- Supports DDR4 Memory, up to 3200(MAX) MHz
- Core Boost : With premium layout and digital power design to support more cores and provide better performance
- Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
- H610 on LGA1700, MATX, 4 DDR4 slots.
- Manufacturer part number PRO H610M-G DDR4.
Factory sealed, full manufacturer warranty where the vendor honours it in Pakistan.
Covered by a 12 month warranty from the manufacturer where honoured locally, and by us where not.
Specification
Platform
- Socket
- LGA1700
- Chipset
- H610
- Form factor
- MATX
- VRM phases
- 8
- EPS headers
- 1 x 8-pin
Memory
- Generation
- DDR4
- Slots
- 4
- Accepted
- UDIMM
- Max speed
- 3200 MT/s
- Max capacity
- 128 GB
- ECC
- No
Expansion
- Slot 1
- Gen 4.0 x16 mechanical, x16 wired
- Slot 2
- Gen 3.0 x16 mechanical, x4 wired, narrower than it looks
