- Socket
- AM5
- DIMM
- 4 slots
- Slots
- 2x x16
Photographs of this unit

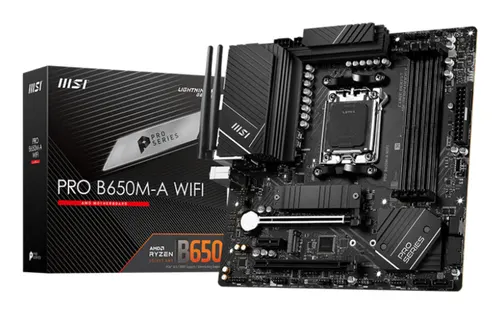

1 / 4MSI PRO B650M-A WIFI
Image source: Icecat · Manufacturer product image syndicated by Icecat; usage subject to Icecat terms
Why this part
- Supports AMD Ryzen™ 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 6400+MHz (OC)
- Core Boost : With premium layout and digital power design to support more cores and provide better performance
- Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
- B650 on AM5, MATX, 4 DDR5 slots.
- Manufacturer part number PRO B650M-A WIFI.
Factory sealed, full manufacturer warranty where the vendor honours it in Pakistan.
Covered by a 12 month warranty from the manufacturer where honoured locally, and by us where not.
Specification
Platform
- Socket
- AM5
- Chipset
- B650
- Form factor
- MATX
- VRM phases
- 8
- EPS headers
- 1 x 8-pin
Memory
- Generation
- DDR5
- Slots
- 4
- Accepted
- UDIMM
- Max speed
- 6400 MT/s
- Max capacity
- 192 GB
- ECC
- No
Expansion
- Slot 1
- Gen 4.0 x16 mechanical, x16 wired
- Slot 2
- Gen 3.0 x16 mechanical, x4 wired, narrower than it looks
Storage & network
- M.2 slots
- 2 (up to Gen 4.0)
- SATA ports
- 4
- U.2 ports
- 0
- Onboard network
- 1 x 2.5 GbE
- Out-of-band management
- None
- BIOS flashback
- No
