- Socket
- LGA1700
- DIMM
- 4 slots
- Slots
- 2x x16
Photographs of this unit

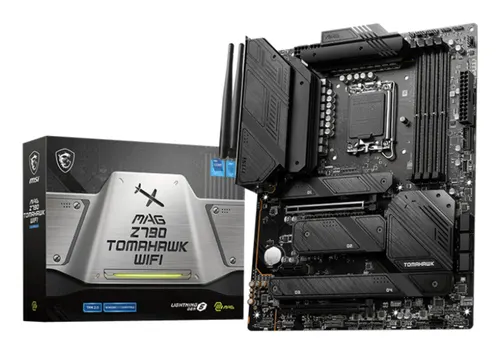

1 / 4MSI MAG Z790 TOMAHAWK WIFI
Image source: Icecat · Manufacturer product image syndicated by Icecat; usage subject to Icecat terms
Why this part
- Supports 12th/ 13th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
- Supports DDR5 Memory, up to 7200+(OC) MHz
- Enhanced Power Design: 16+1+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2
- Z790 on LGA1700, ATX, 4 DDR5 slots.
- Manufacturer part number MAG Z790 TOMAHAWK WIFI.
Factory sealed, full manufacturer warranty where the vendor honours it in Pakistan.
Covered by a 12 month warranty from the manufacturer where honoured locally, and by us where not.
Specification
Platform
- Socket
- LGA1700
- Chipset
- Z790
- Form factor
- ATX
- VRM phases
- 16
- EPS headers
- 2 x 8-pin
Memory
- Generation
- DDR5
- Slots
- 4
- Accepted
- UDIMM
- Max speed
- 6400 MT/s
- Max capacity
- 192 GB
- ECC
- No
Expansion
- Slot 1
- Gen 5.0 x16 mechanical, x16 wired
- Slot 2
- Gen 4.0 x16 mechanical, x4 wired, narrower than it looks
- Slot 3
- Gen 3.0 x1 mechanical, x1 wired
Storage & network
- M.2 slots
- 4 (up to Gen 5.0)
- SATA ports
- 6
- U.2 ports
- 0
- Onboard network
- 1 x 2.5 GbE
- Out-of-band management
- None
- BIOS flashback
- Yes
