- Socket
- AM5
- DIMM
- 4 slots
- Slots
- 2x x16
Why this part

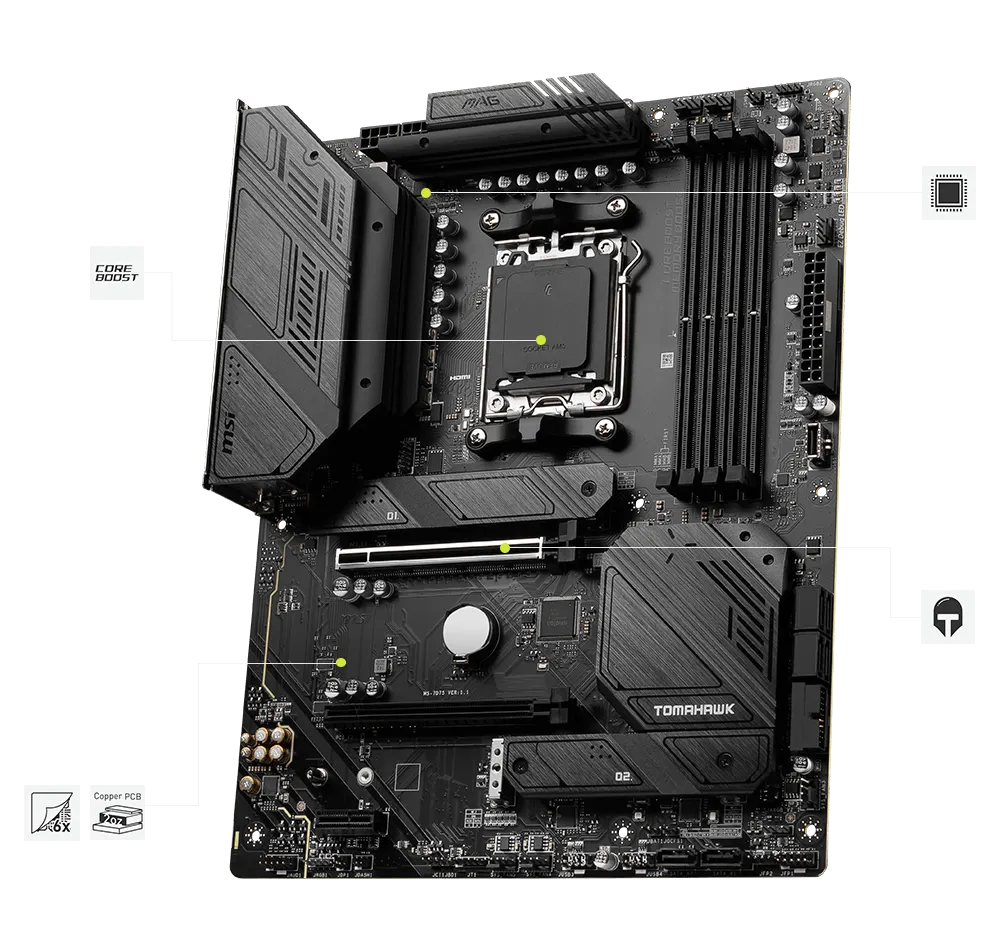

- The sensible AM5 board, everything you need, nothing you do not
- Handles a 9950X without VRM throttling
- BIOS Flashback
Bench tested under load for 48 hours. Visible cosmetic wear, no functional impact.
Covered by a 6 month warranty from us directly.
Specification
Platform
- Socket
- AM5
- Chipset
- AMD B650
- Form factor
- ATX
- VRM phases
- 14
- EPS headers
- 2 x 8-pin
Memory
- Generation
- DDR5
- Slots
- 4
- Accepted
- UDIMM
- Max speed
- 6400 MT/s
- Max capacity
- 192 GB
- ECC
- Yes
Expansion
- Slot 1
- Gen 4.0 x16 mechanical, x16 wired
- Slot 2
- Gen 3.0 x16 mechanical, x4 wired, narrower than it looks
Storage & network
- M.2 slots
- 3 (up to Gen 5.0)
- SATA ports
- 6
- U.2 ports
- 0
- Onboard network
- 1 x 2.5 GbE
- Out-of-band management
- None
- BIOS flashback
- Yes
Same part, other grades and partners
3 other SKUs built on the same processor. The price difference comes from condition grade, board partner and cooler design, not from the chip itself.
