- Cores
- 14C / 28T
- Boost
- 3.3 GHz
- Lanes
- Gen3 x40
Photographs of this unit

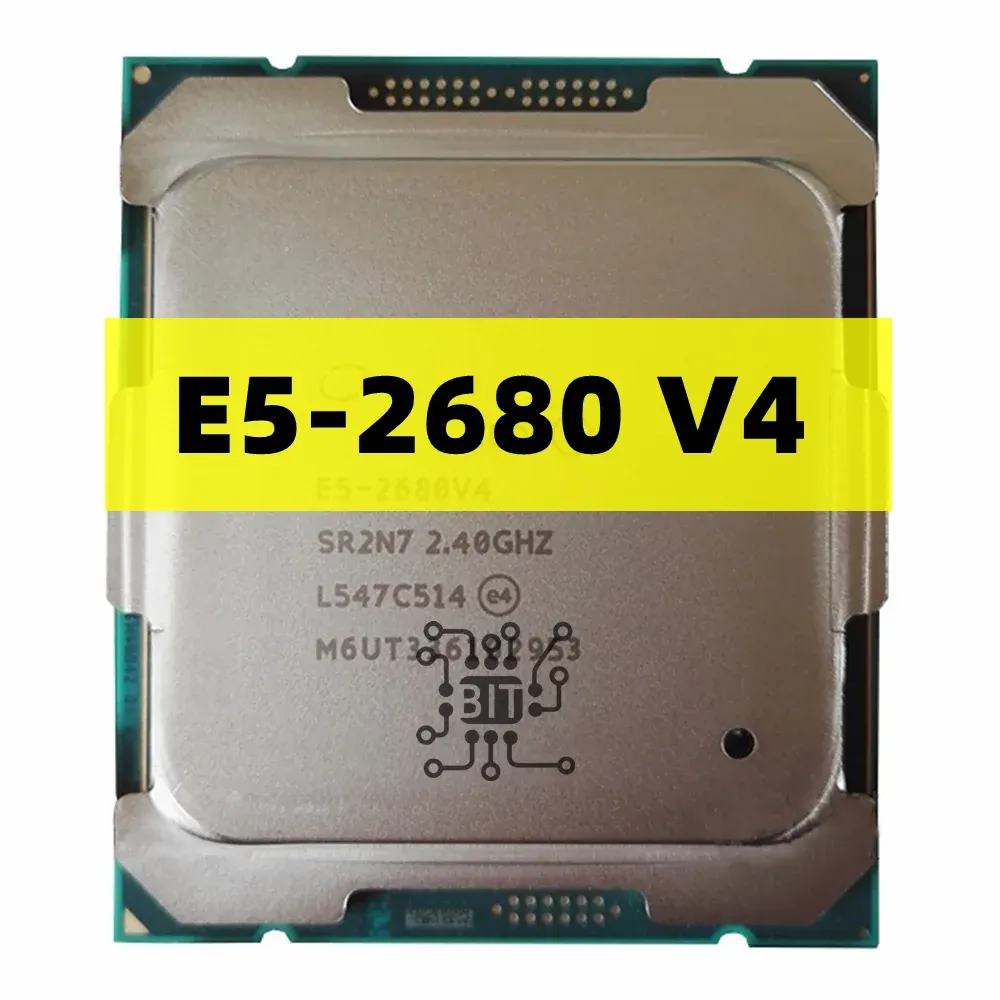

1 / 1Intel Xeon E5-2680 v4 Tray
Photo: ae01.alicdn.com
Why this part
- The cheapest real ECC platform you can build in Pakistan
- 28 threads per socket for lab and homelab work
- PCIe 3.0 only, do not plan a modern GPU node around it
- Tray part, no heatsink, order cooling separately
Pulled working from a decommissioned system, cleaned, re-pasted and load tested.
Covered by a 3 month warranty from us directly.
Specification
Core
- Socket
- LGA2011-3
- Architecture
- Broadwell-EP
- Cores / threads
- 14 / 28
- Base / boost
- 2.4 / 3.3 GHz
- L3 cache
- 35 MB
Memory controller
- Generation
- DDR4
- Channels
- 4 per socket
- Accepted
- RDIMM, LRDIMM
- Max speed
- 2400 MT/s
- Max capacity
- 1.5 TB per socket
- ECC
- Yes
I/O
- PCIe
- Gen 3.0
- Lanes
- 40 per socket
- Multi-socket
- Up to 2P
Power & extras
- Nameplate TDP
- 120 W
- Sustained peak
- 140 W
- Cooler included
- No
- AVX-512
- No
- AMX
- No
- Integrated graphics
- No
Same part, other grades and partners
3 other SKUs built on the same processor. The price difference comes from condition grade, board partner and cooler design, not from the chip itself.
