- Socket
- SP5 x2
- DIMM
- 24 slots
- Slots
- 5x x16
Photographs of this unit

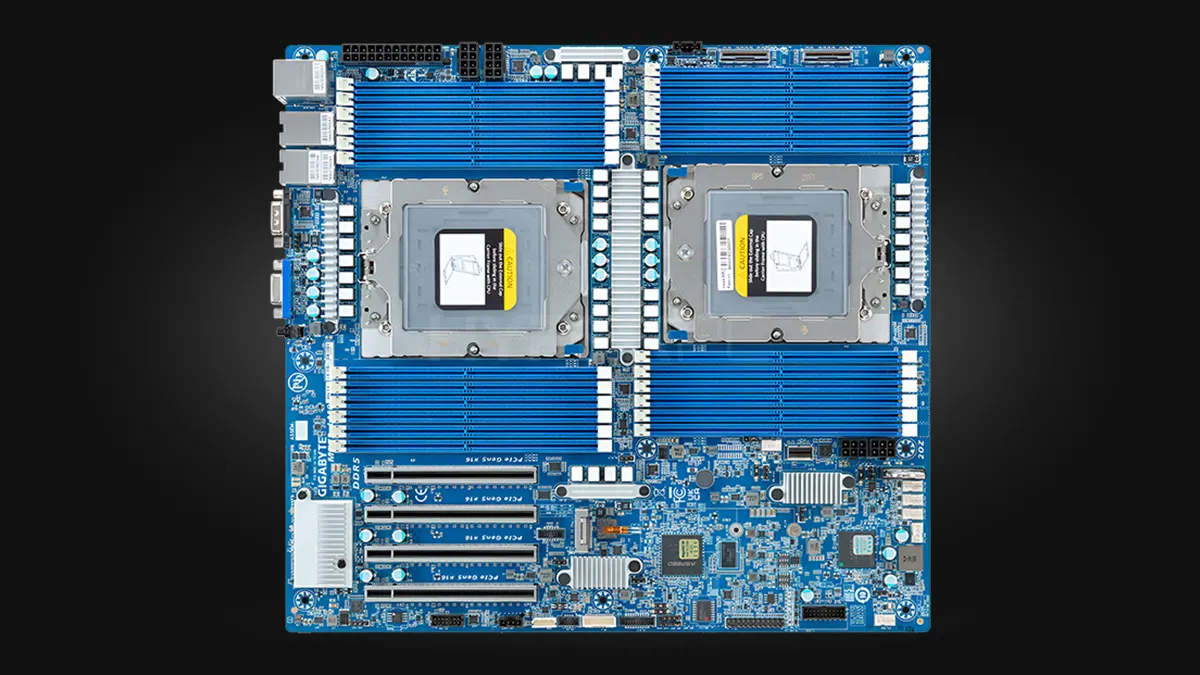

1 / 1GIGABYTE MZ73-LM0 Dual SP5
Photo: hyperpc.ae
Why this part
- Eight U.2 ports direct from the CPU, no HBA needed
- 384 cores with two 9965s
- Dual 10GbE
Factory sealed, full manufacturer warranty where the vendor honours it in Pakistan.
Covered by a 12 month warranty from the manufacturer where honoured locally, and by us where not.
Specification
Platform
- Socket
- SP5 x2
- Chipset
- AMD SoC
- Form factor
- EATX
- VRM phases
- 20
- EPS headers
- 4 x 8-pin
Memory
- Generation
- DDR5
- Slots
- 24
- Accepted
- RDIMM
- Max speed
- 4800 MT/s
- Max capacity
- 6 TB
- ECC
- Yes
Expansion
- Slot 1
- Gen 5.0 x16 mechanical, x16 wired
- Slot 2
- Gen 5.0 x16 mechanical, x16 wired
- Slot 3
- Gen 5.0 x16 mechanical, x16 wired
- Slot 4
- Gen 5.0 x16 mechanical, x16 wired
- Slot 5
- Gen 5.0 x16 mechanical, x16 wired
Storage & network
- M.2 slots
- 2 (up to Gen 5.0)
- SATA ports
- 4
- U.2 ports
- 8
- Onboard network
- 2 x 10 GbE
- Out-of-band management
- IPMI 2.0 with dedicated port
- BIOS flashback
- No
Same part, other grades and partners
1 other SKU built on the same processor. The price difference comes from condition grade, board partner and cooler design, not from the chip itself.
