ASUS

Pro WS WRX80E-SAGE SE WIFI

MPN WRX80E-SAGE · SKU M-0KJGYUE · Released 2021

Socket: sWRX8
DIMM: 8 slots
Slots: 7x x16

Photographs of this unit

1 / 1

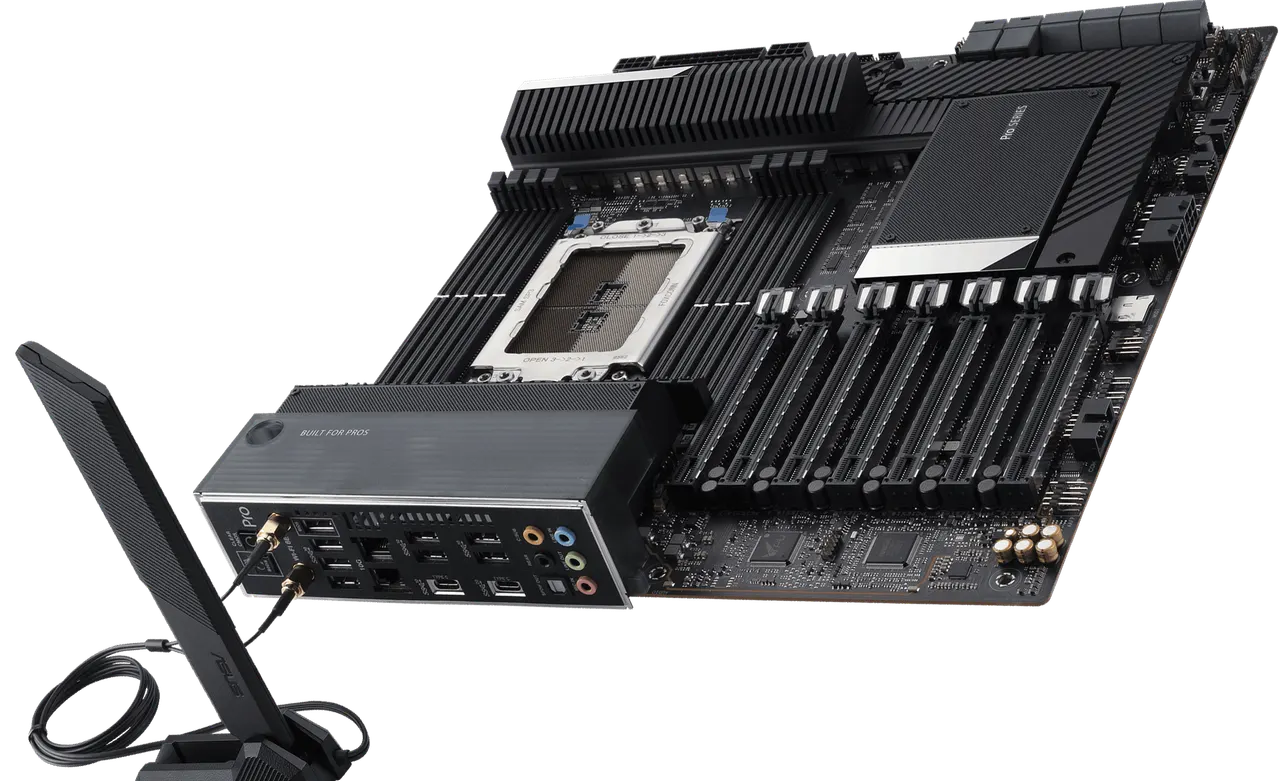

ASUS Pro WS WRX80E-SAGE SE WIFI

Photo: dlcdnwebimgs.asus.com

Why this part

Seven x16 PCIe 4.0 slots, all electrically full width
The classic four-GPU workstation board
Dual 10GbE and a BMC

Condition · Tested Pull

Compare all six grades →

Pulled working from a decommissioned system, cleaned, re-pasted and load tested.

Covered by a 3 month warranty from us directly.

Specification

Platform

Socket: sWRX8
Chipset: AMD WRX80
Form factor: EATX
VRM phases: 16
EPS headers: 2 x 8-pin

Memory

Generation: DDR4
Slots: 8
Accepted: RDIMM
Max speed: 3200 MT/s
Max capacity: 2 TB
ECC: Yes

Expansion

Slot 1: Gen 4.0 x16 mechanical, x16 wired
Slot 2: Gen 4.0 x16 mechanical, x16 wired
Slot 3: Gen 4.0 x16 mechanical, x16 wired
Slot 4: Gen 4.0 x16 mechanical, x16 wired
Slot 5: Gen 4.0 x16 mechanical, x16 wired
Slot 6: Gen 4.0 x16 mechanical, x16 wired
Slot 7: Gen 4.0 x16 mechanical, x16 wired

Storage & network

M.2 slots: 3 (up to Gen 4.0)
SATA ports: 8
U.2 ports: 0
Onboard network: 2 x 10 GbE
Out-of-band management: IPMI 2.0 with dedicated port
BIOS flashback: Yes

Same part, other grades and partners

3 other SKUs built on the same processor. The price difference comes from condition grade, board partner and cooler design, not from the chip itself.

ASUS Pro WS WRX80E-SAGE SE WIFIRefurbished Grade A ASUS Pro WS WRX80E-SAGE SE WIFIRefurbished Grade B ASUS Pro WS WRX80E-SAGE SE WIFIOEM Recertified
