- Cores
- 8C / 16T
- Boost
- 5.2 GHz
- Lanes
- Gen5 x28
Photographs of this unit

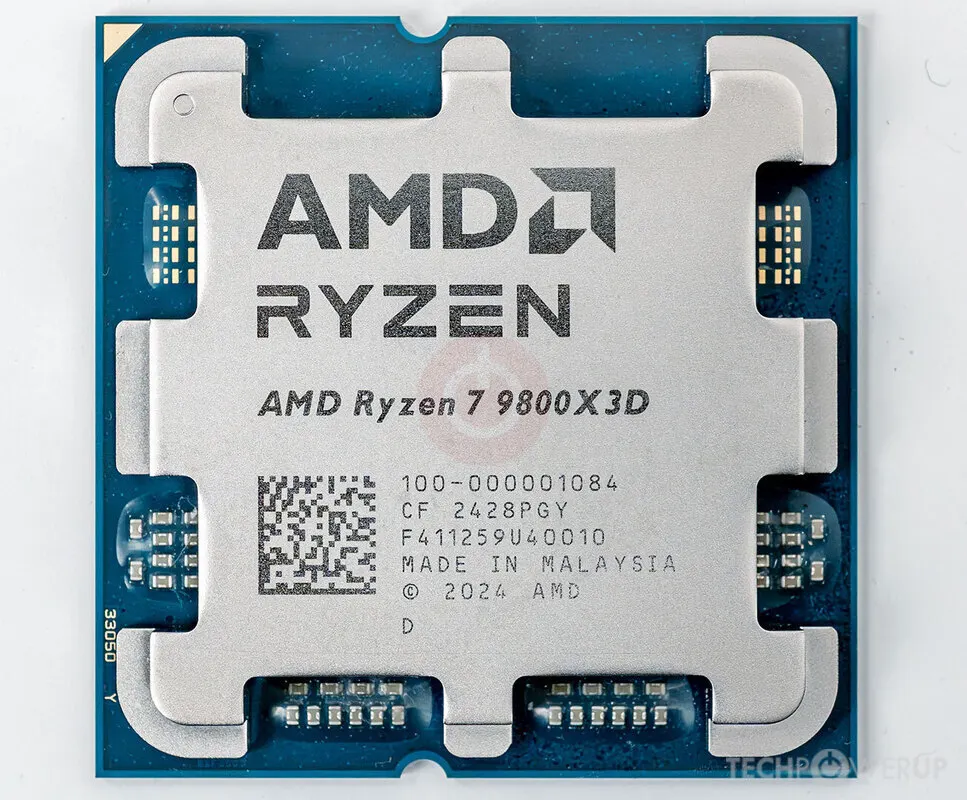

1 / 2AMD Ryzen 7 9800X3D Boxed
Image source: supplied-catalogue · User-supplied catalogue photograph
Why this part
- 96MB L3, the fastest gaming CPU made
- Cache die moved below the cores, so it clocks and cools properly now
- 120W
- Boxed retail package, heatsink included
Factory sealed, full manufacturer warranty where the vendor honours it in Pakistan.
Covered by a 12 month warranty from the manufacturer where honoured locally, and by us where not.
Specification
Core
- Socket
- AM5
- Architecture
- Zen 5 (3D V-Cache)
- Cores / threads
- 8 / 16
- Base / boost
- 4.7 / 5.2 GHz
- L3 cache
- 96 MB
Memory controller
- Generation
- DDR5
- Channels
- 2 per socket
- Accepted
- UDIMM
- Max speed
- 5600 MT/s
- Max capacity
- 192 GB per socket
- ECC
- Yes
I/O
- PCIe
- Gen 5.0
- Lanes
- 28 per socket
- Multi-socket
- Single socket only
Power & extras
- Nameplate TDP
- 120 W
- Sustained peak
- 162 W
- Cooler included
- No
- AVX-512
- Yes
- AMX
- No
- Integrated graphics
- Yes
Same part, other grades and partners
1 other SKU built on the same processor. The price difference comes from condition grade, board partner and cooler design, not from the chip itself.
