KIOXIA
CM7-R U.3 PCIe 5.0 7.68TB
MPN KCMY1RUG7T68 · SKU S-00NGJ6G · Released 2023
Photographs of this unit

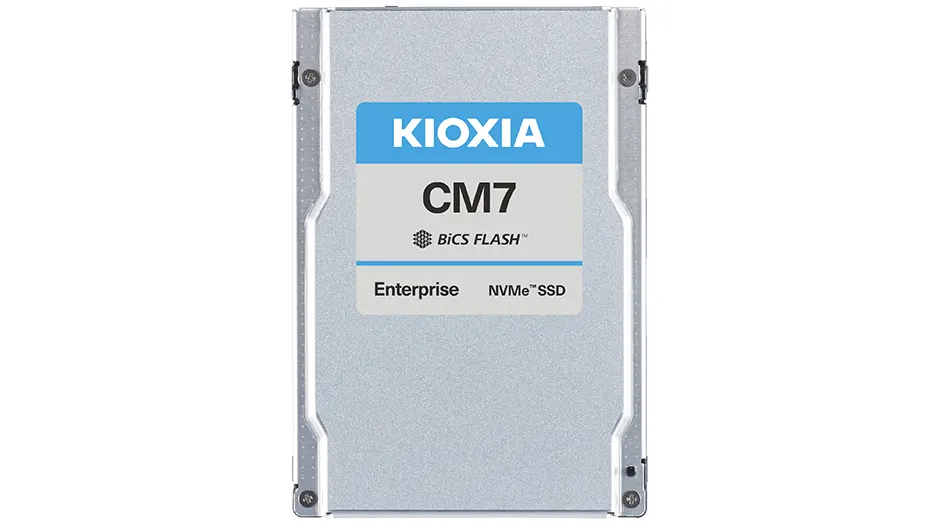

1 / 1KIOXIA CM7-R U.3 PCIe 5.0 7.68TB
Image source: KIOXIA · Manufacturer product image; usage subject to KIOXIA terms
Why this part
- 14 GB/s on a single drive, PCIe 5.0 x4 saturated
- 2.7M read IOPS
- Needs a Gen5 backplane to reach those numbers
New / Sealed
Factory sealed, full manufacturer warranty where the vendor honours it in Pakistan.
Covered by a 12 month warranty from the manufacturer where honoured locally, and by us where not.
Specification
Drive
- Interface
- U3
- Capacity
- 7.68 TB
- Media
- NVME TLC
- Form factor
- 2.5in-15mm
- PCIe
- Gen 5.0 x4
Performance
- Sequential read
- 14000 MB/s
- Sequential write
- 6750 MB/s
- Random read
- 2,700,000 IOPS
- Random write
- 310,000 IOPS
Endurance & power
- Endurance
- 1 DWPD
- Power-loss protection
- Yes, onboard capacitors
- Active power
- 25 W
Same part, other grades and partners
9 other SKUs built on the same processor. The price difference comes from condition grade, board partner and cooler design, not from the chip itself.
