B760M DS3H Motherboard - Supports Intel Core 14th Gen CPUs, 6+2+1 Phases Digital VRM, up to 7600MHz DDR5 (OC), 2xPCIe 4.0 M.2, 2.5GbE LAN, USB 3.2 Gen

MPN B760M DS3H · SKU ICE-B760M-DS3H

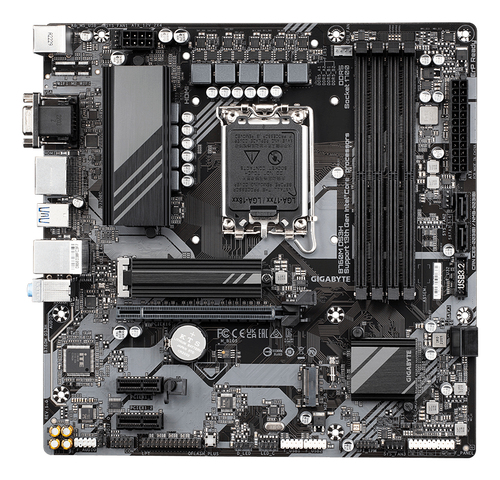

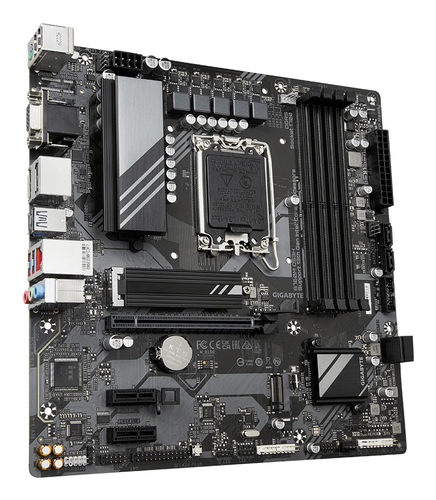

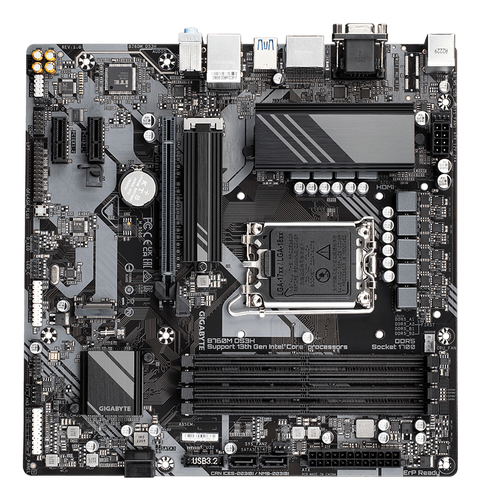

Photographs of this unit

1 / 4

GIGABYTE B760M DS3H Motherboard - Supports Intel Core 14th Gen CPUs, 6+2+1 Phases Digital VRM, up to 7600MHz DDR5 (OC), 2xPCIe 4.0 M.2, 2.5GbE LAN, USB 3.2 Gen

Image source: Icecat · Manufacturer product image syndicated by Icecat; usage subject to Icecat terms

Why this part

Intel Socket LGA 1700：Support 14th and 13th Gen Series Processors
Unparalleled Performance：Hybrid 6+2+1 Phases Digital VRM Solution
Dual Channel DDR5：4*DIMMs XMP Memory Module Support
Next Generation Storage：2*PCIe 4.0 x4 M.2 Connectors
B760 on LGA1700, MATX, 4 DDR5 slots.
Manufacturer part number B760M DS3H.

New / Sealed

Factory sealed, full manufacturer warranty where the vendor honours it in Pakistan.

Covered by a 12 month warranty from the manufacturer where honoured locally, and by us where not.

Specification

Platform

Socket: LGA1700
Chipset: B760
Form factor: MATX
VRM phases: 8
EPS headers: 1 x 8-pin

Memory

Generation: DDR5
Slots: 4
Accepted: UDIMM
Max speed: 6400 MT/s
Max capacity: 192 GB
ECC: No

Expansion

Slot 1: Gen 4.0 x16 mechanical, x16 wired
Slot 2: Gen 3.0 x16 mechanical, x4 wired, narrower than it looks

Storage & network

M.2 slots: 2 (up to Gen 4.0)
SATA ports: 4
U.2 ports: 0
Onboard network: 1 x 2.5 GbE
Out-of-band management: None
BIOS flashback: No
