New / Sealeddesktop
GIGABYTE
B650M DS3H Motherboard - AMD Ryzen 9000 Series CPUs, 6+2+1 Phases VRM, up to 8000MHz DDR5 (OC), 2xPCIe 4.0 M.2, 2.5GbE LAN, USB 3.2 Gen 2
MPN B650M DS3H · SKU ICE-B650M-DS3H

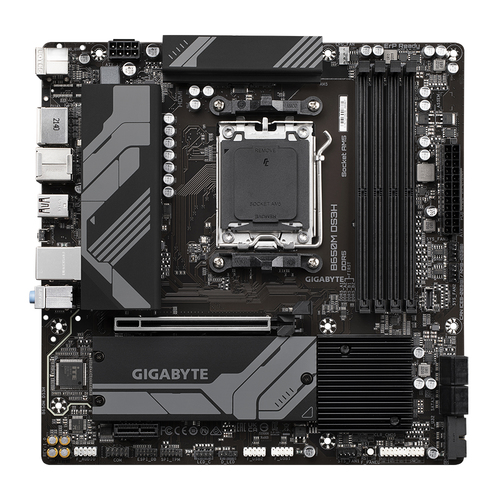

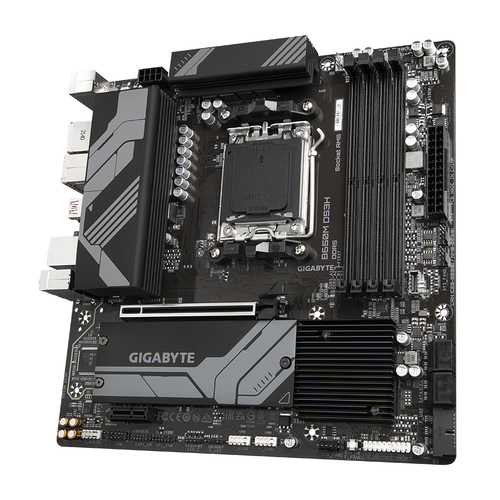

Photographs of this unit
1 / 4GIGABYTE B650M DS3H Motherboard - AMD Ryzen 9000 Series CPUs, 6+2+1 Phases VRM, up to 8000MHz DDR5 (OC), 2xPCIe 4.0 M.2, 2.5GbE LAN, USB 3.2 Gen 2
Image source: Icecat · Manufacturer product image syndicated by Icecat; usage subject to Icecat terms
Why this part
- AMD Socket AM5：Supports AMD Ryzen 7000 / Ryzen 8000 / Ryzen 9000 Series Processors
- Unparalleled Performance：Direct 6+2+1 Phases Digital VRM Solution
- Dual Channel DDR5：4*SMD DIMMs with AMD EXPO & Intel XMP Memory Module Support
- SuperSpeed Storage：2*PCIe 4.0 x4 M.2 Connectors
- B650 on AM5, MATX, 4 DDR5 slots.
- Manufacturer part number B650M DS3H.
New / Sealed
Factory sealed, full manufacturer warranty where the vendor honours it in Pakistan.
Covered by a 12 month warranty from the manufacturer where honoured locally, and by us where not.
Specification
Platform
- Socket
- AM5
- Chipset
- B650
- Form factor
- MATX
- VRM phases
- 8
- EPS headers
- 1 x 8-pin
Memory
- Generation
- DDR5
- Slots
- 4
- Accepted
- UDIMM
- Max speed
- 6400 MT/s
- Max capacity
- 192 GB
- ECC
- No
Expansion
- Slot 1
- Gen 4.0 x16 mechanical, x16 wired
- Slot 2
- Gen 3.0 x16 mechanical, x4 wired, narrower than it looks
Storage & network
- M.2 slots
- 2 (up to Gen 4.0)
- SATA ports
- 4
- U.2 ports
- 0
- Onboard network
- 1 x 2.5 GbE
- Out-of-band management
- None
- BIOS flashback
- No
