New / Sealeddesktop
ASUS
TUF GAMING H670-PRO WIFI D4
MPN 90MB1900-M0EAY0 · SKU ICE-90MB1900-M0EAY0
Photographs of this unit

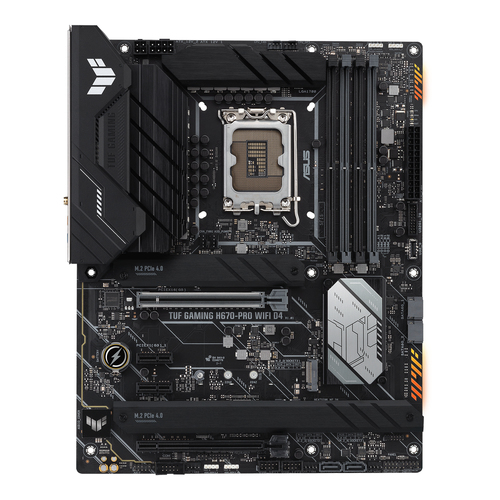

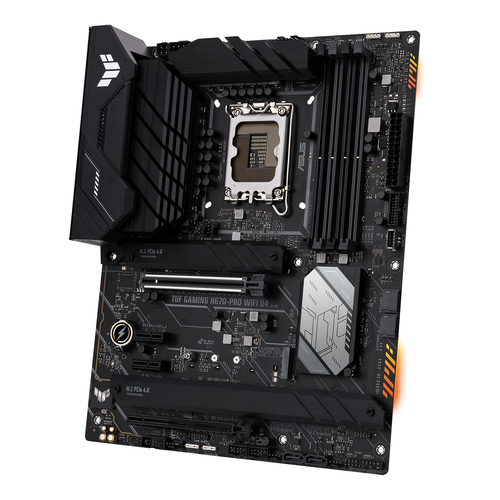

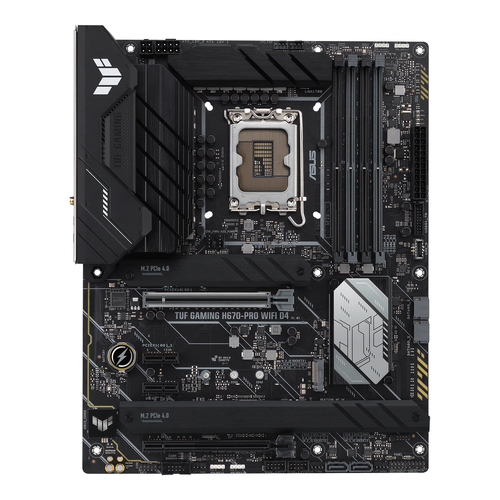

1 / 4ASUS TUF GAMING H670-PRO WIFI D4
Image source: Icecat · Manufacturer product image syndicated by Icecat; usage subject to Icecat terms
Why this part
- Intel® LGA 1700 socket: Ready for 12th Gen Intel® processors
- Enhanced power solution: 14+1 DrMOS, six-layer PCB, 8+4 ProCool sockets, military-grade TUF components and Digi+ VRM for maximum durability
- Comprehensive cooling: Enlarged VRM heatsink, Stack Cool 3+, M.2 heatsinks, PCH heatsink, hybrid fan headers and Fan Xpert 4 utility
- Latest connectivity: PCIe 5.0 slot, PCIe 4.0 M.2 slots, rear USB 3.2 Gen 2x2 Type-C®, front panel header for USB 3.2 Gen 1 Type-C® and Thunderbolt 4™ support
- H670 on LGA1700, ATX, 4 DDR4 slots.
- Manufacturer part number 90MB1900-M0EAY0.
New / Sealed
Factory sealed, full manufacturer warranty where the vendor honours it in Pakistan.
Covered by a 12 month warranty from the manufacturer where honoured locally, and by us where not.
Specification
Platform
- Socket
- LGA1700
- Chipset
- H670
- Form factor
- ATX
- VRM phases
- 12
- EPS headers
- 1 x 8-pin
Memory
- Generation
- DDR4
- Slots
- 4
- Accepted
- UDIMM
- Max speed
- 3200 MT/s
- Max capacity
- 128 GB
- ECC
- No
Expansion
- Slot 1
- Gen 4.0 x16 mechanical, x16 wired
- Slot 2
- Gen 4.0 x16 mechanical, x4 wired, narrower than it looks
- Slot 3
- Gen 3.0 x1 mechanical, x1 wired
Storage & network
- M.2 slots
- 3 (up to Gen 4.0)
- SATA ports
- 6
- U.2 ports
- 0
- Onboard network
- 1 x 2.5 GbE
- Out-of-band management
- None
- BIOS flashback
- Yes
