New / Sealeddesktop
ASUS
TUF Gaming B450M-Plus II
MPN 90MB1620-M0EAY0 · SKU ICE-90MB1620-M0EAY0

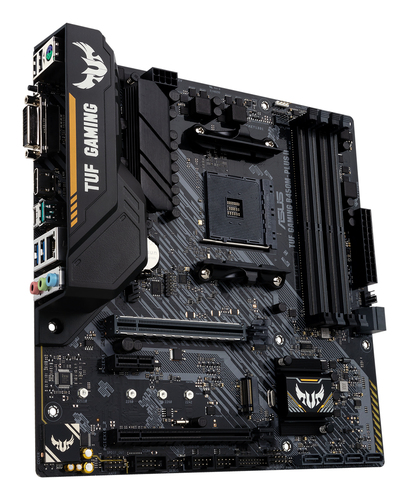

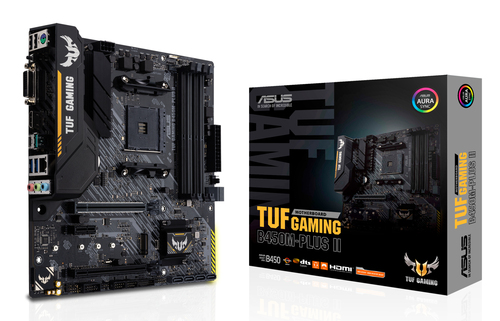

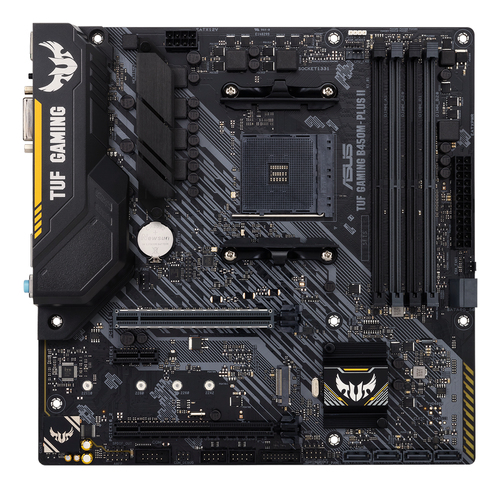

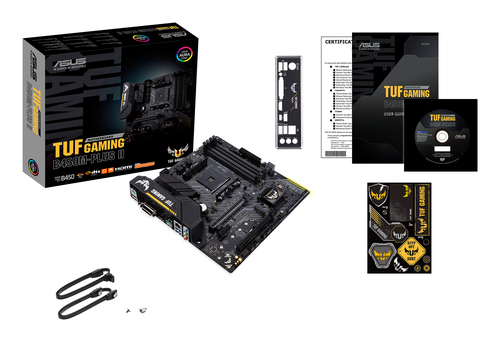

Photographs of this unit
1 / 4ASUS TUF Gaming B450M-Plus II
Image source: Icecat · Manufacturer product image syndicated by Icecat; usage subject to Icecat terms
Why this part
- Comprehensive cooling: VRM heatsink, PCH heatsink, Fan Xpert 2+
- Next-gen connectivity: USB 3.2 Gen 2 Type-A support
- AI Noise-Canceling Microphone: Provides crystal-clear in-game voice communication
- Aura Sync RGB Lighting: Synchronize LED lighting with a vast portfolio of compatible PC gear
- B450 on AM4, MATX, 4 DDR4 slots.
- Manufacturer part number 90MB1620-M0EAY0.
New / Sealed
Factory sealed, full manufacturer warranty where the vendor honours it in Pakistan.
Covered by a 12 month warranty from the manufacturer where honoured locally, and by us where not.
Specification
Platform
- Socket
- AM4
- Chipset
- B450
- Form factor
- MATX
- VRM phases
- 8
- EPS headers
- 1 x 8-pin
Memory
- Generation
- DDR4
- Slots
- 4
- Accepted
- UDIMM
- Max speed
- 3200 MT/s
- Max capacity
- 128 GB
- ECC
- No
Expansion
- Slot 1
- Gen 4.0 x16 mechanical, x16 wired
- Slot 2
- Gen 3.0 x16 mechanical, x4 wired, narrower than it looks
Storage & network
- M.2 slots
- 2 (up to Gen 4.0)
- SATA ports
- 4
- U.2 ports
- 0
- Onboard network
- 1 x 1 GbE
- Out-of-band management
- None
- BIOS flashback
- Yes
