New / Sealeddesktop
ASUS
ROG STRIX X670E-A GAMING WIFI
MPN 90MB1BM0-M0EAY0 · SKU ICE-90MB1BM0-M0EAY0
Photographs of this unit

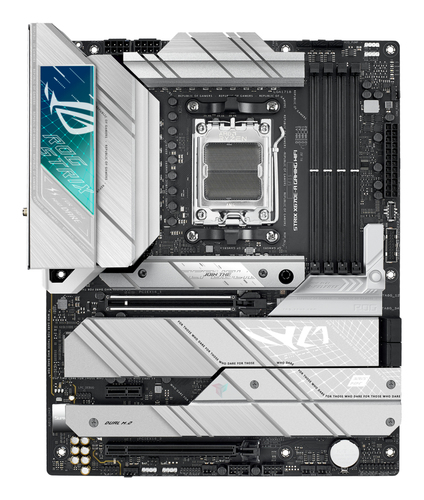

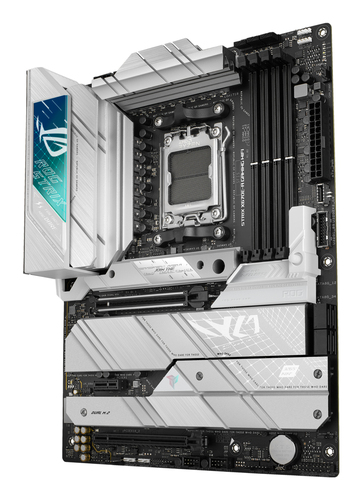

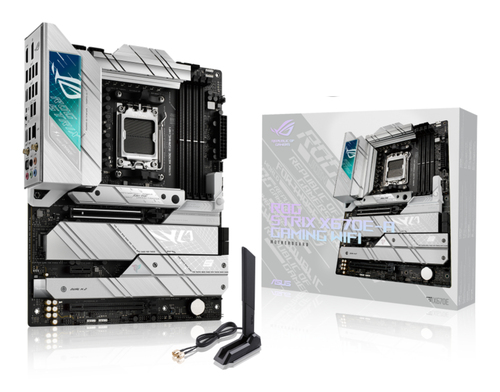

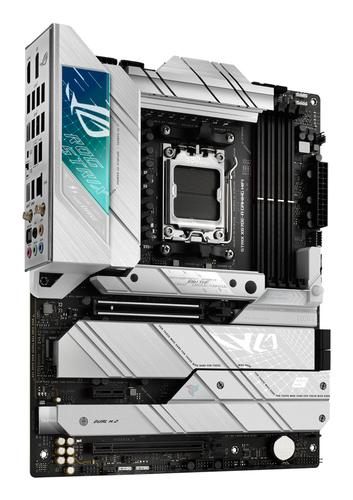

1 / 4ASUS ROG STRIX X670E-A GAMING WIFI
Image source: Icecat · Manufacturer product image syndicated by Icecat; usage subject to Icecat terms
Why this part
- AMD Socket AM5 AMD Ryzen™ 7
- PC ATX AMD X670 Realtek ALC4080 7.1 channels
- DDR5-SDRAM 4 DIMM Maximum internal memory: 128 GB
- HDD & SSD M.2, SATA III RAID support
- X670E on AM5, ATX, 4 DDR5 slots.
- Manufacturer part number 90MB1BM0-M0EAY0.
New / Sealed
Factory sealed, full manufacturer warranty where the vendor honours it in Pakistan.
Covered by a 12 month warranty from the manufacturer where honoured locally, and by us where not.
Specification
Platform
- Socket
- AM5
- Chipset
- X670E
- Form factor
- ATX
- VRM phases
- 16
- EPS headers
- 2 x 8-pin
Memory
- Generation
- DDR5
- Slots
- 4
- Accepted
- UDIMM
- Max speed
- 6400 MT/s
- Max capacity
- 192 GB
- ECC
- Yes
Expansion
- Slot 1
- Gen 5.0 x16 mechanical, x16 wired
- Slot 2
- Gen 4.0 x16 mechanical, x4 wired, narrower than it looks
- Slot 3
- Gen 3.0 x1 mechanical, x1 wired
Storage & network
- M.2 slots
- 4 (up to Gen 5.0)
- SATA ports
- 6
- U.2 ports
- 0
- Onboard network
- 1 x 2.5 GbE
- Out-of-band management
- None
- BIOS flashback
- Yes
